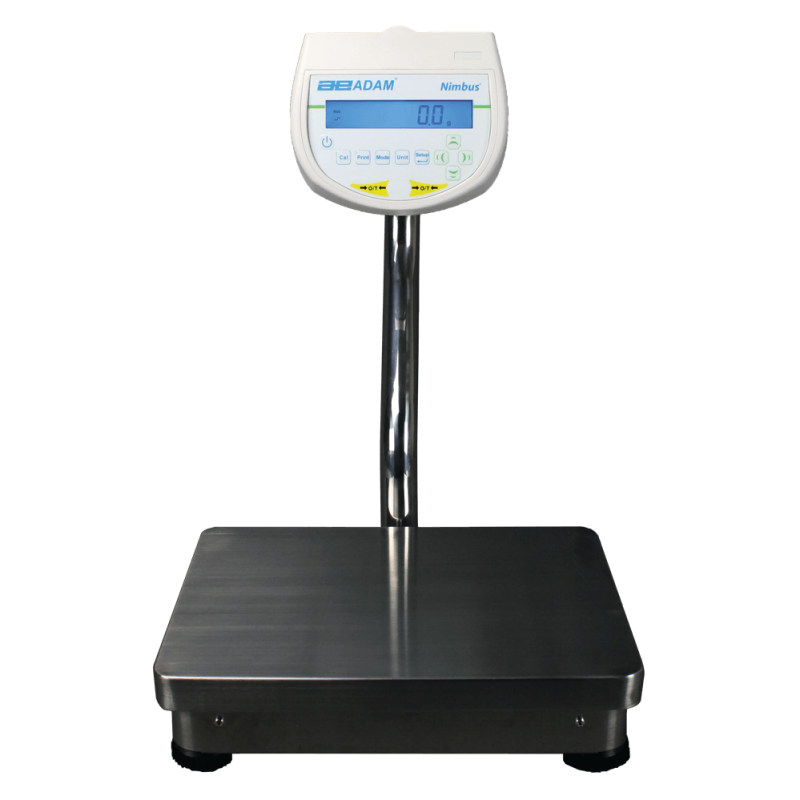

ADAM Nimbus Precision Balances with Pillar Mounted Display

No review yet. Write Review
Regular price
$2,641.83 GST Inc.
Regular price
Sale price
$2,641.83 GST Inc.
Tax included. Shipping calculated at checkout.

Vendor : Adam Equipment

Product Type : Precision Scales

Sku : NBL 12001p

Hurry! Only
units left in stock!

Durable and reliable, Nimbus precision balances deliver a full breadth of readabilities ranging from 1mg to 0.1g. Innovative design enables a compact footprint, so it occupies minimal space but retains a high level of performance. The single-piece construction offers greater stability, producing highly repeatable results. The weighing sensor in the Nimbus is crafted from a single block, and contains fewer parts than a traditional force motor balance. This optimised internal mechanism is fabricated using hardened materials, helping the Nimbus tolerate rigorous laboratory use. Efficiency in the mechanics, plus improved processing power of the electronics, leads to excellent performance.


  • Colour-coded keys facilitate quick recognition of the most frequently used buttons
  • Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
  • Removable draught shield on models with 0.001g readability helps to reduce errors caused by air currents
  • Robust metal housing protects internal components in harsh environments
  • Sealed keypad protects against dirt and spills
  • USB and RS-232 interfaces provide speedy communication with computers and printers
  • Large, grade 304 stainless steel pan allows easy cleaning
  • Vivid, backlit LCD easily visible in any lighting conditions
  • Lockdown device to secure balance


  • External calibration allows for verification and adjustment with weights
  • Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
  • Selectable digital filtering helps minimise effects of vibration and disturbances
  • Zero-tracking feature ensures display returns to zero reading
  • Multilingual display allows use in many different countries


  • Vivid, backlit LCD easily visible in any lighting conditions


  • AC adapter included


    • Weighing
    • Net/Total
    • Check Weighing
    • Weight Accumulation
    • Parts Counting
    • Percentage Weighing
    • Animal/Dynamic Weighing
    • Density Determination
    • Below Balance Weighing
              Model NBL 223e NBL 423e NBL 623e NBL 823e
              W/ Internal Cal NBL 223i NBL 423i NBL 623i NBL 823i
              Capacity 220 g 420 g 620 g 820 g
              Readability 0.001 g
              Linearity (±) 0.002 g
              Pan Size 120 mm ø 160 mm ø
              Weighing Units g | mg | ct | GN | N | lb | oz | lb:oz | ozt | dwt | T | custom unit
              Draught Shield Round: 180 mm ø x 110 mm
              Overall Dim. 22 cm x 31 cm x 27 cm
              Net Weight 3.1 kg / 3.7 kg (internal cal.) 4.0 kg / 4.8 kg (internal cal.)


              Model NBL 1602e NBL 2602e NBL 3602e NBL 4602e
              W/ Internal Cal NBL 1602i NBL 2602i NBL 3602i NBL 4602i
              Capacity 1,600 g 2,600 g 3,600 g 4,600 g
              Readability 0.01 g
              Linearity (±) 0.02 g
              Pan Size 160 mm ø
              Weighing Units g | kg | ct | GN | N | lb | oz | lb:oz | ozt | dwt | T | custom unit
              Overall Dim. 22 cm x 31 cm x 27 cm
              Net Weight 3.1 kg / 3.9 kg (internal cal.)


              Model (NBL) 4201e 6201e 8201e 12001e 16001e 22001e
              Capacity 4,200 g 6,200 g 8,200 g 12,000 g 16,000 g 22,000 g
              Readability 0.1 g
              Repeatability 0.2 g
              Linearity (±) 0.2 g 0.4 g
              Pan Size 160 mm ø 400 mm x 300 mm
              Weighing Units g | kg | ct | GN | N | lb | oz | lb:oz | ozt | dwt | T | custom unit
              Calibration External Calibration | Internal Calibration: models ending with I
              Interface RS-232, USB
              Display Backlit LCD with 20 mm high digits
              Power Supply 18 VDC 830 mA adapter
              Operating Temp. 15oC to 35oC
              Housing Extruded aluminium base with cast aluminium case
              Overall Dim. 22 cm x 31 cm x 27 cm 45 cm x 51.5 cm x 19.5 cm
              Net Weight 3.1 kg 7.6 kg
