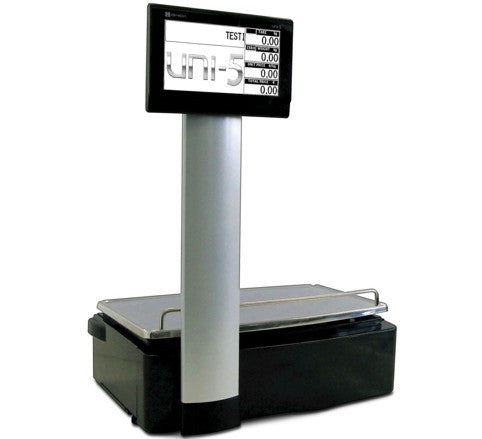

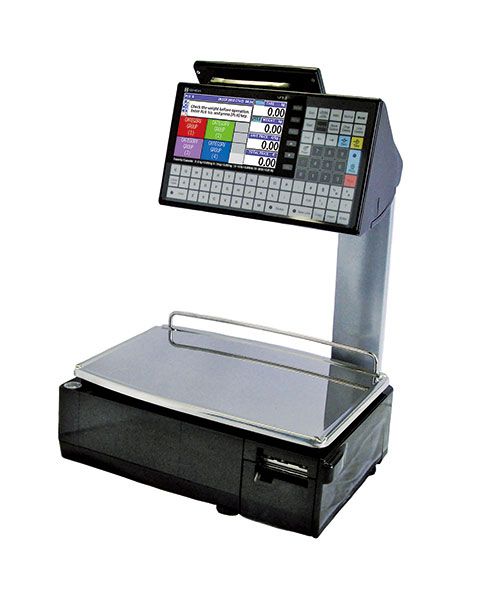

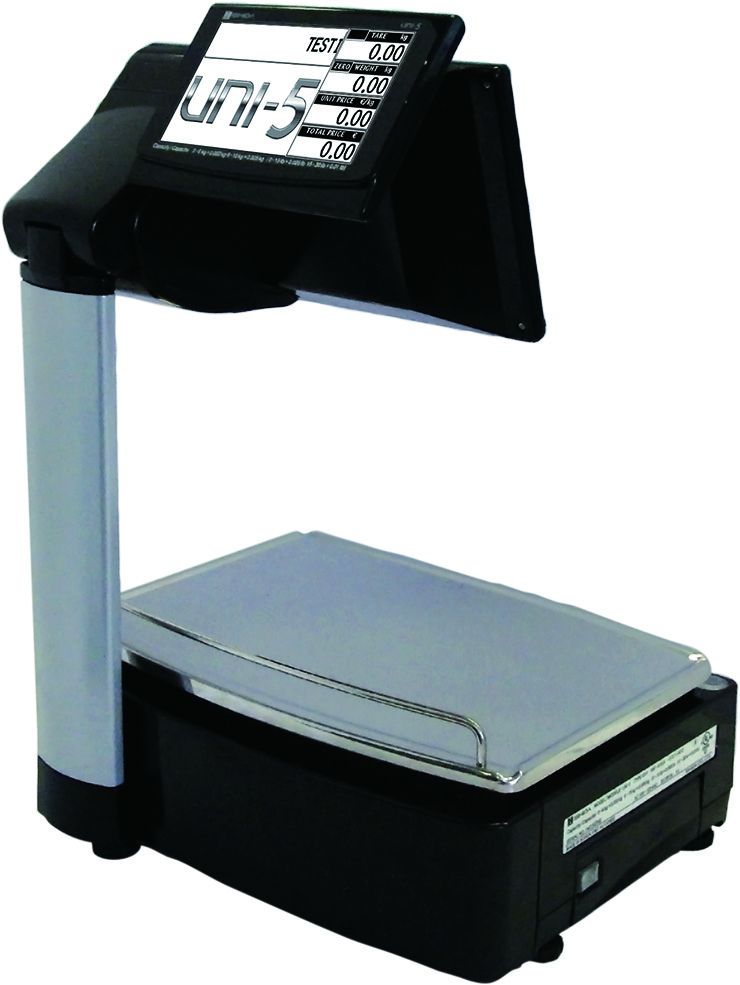

Ishida Uni-5 Price Computing Label Printing Scale
- Regular price
- $4,059.00 GST Inc.
- Regular price
-
$3,327.50 - Sale price
- $4,059.00 GST Inc.
- Unit price
- per
Vendor : Ishida
Product Type : Label Printer Scales
Sku : 20570377
- Description
- Reviews
- Applications
- Articles
- Download Ishida Uni-5 Price Computing Label Printing Scale Specification
The Uni-5 Series packs many features into an attractive low profile, small footprint case. The seven inch colour touch panel is easy to master. The operator display consists of windows for tare, weight, unit price and total price.
The membrane keyboard contains standard function keys and can be customized to include PLU, tare, and category presets plus a large number of specialized functions. Icons identify connectivity status, printing mode, and USB port. The programmable colour touchscreen can be configured with three key sizes and up-to 20 presets per page.
Operators can view virtual receipts, open tickets, and totals before printing. The bright grayscale customer display can scroll and flash advertising messages and images. The fast and easy side-loading direct thermal printer has a variable speed and backing re-winder to quickly switch between labels and receipts.
The Ishida Uni-5 Series includes Ethernet (100Mps) for connection to PC and other scales
Features:
- Large colour touchscreen
- Dual-range weighing
- Side-load labels
- Internal wireless communications
- Ethernet communications
- Up to 99 pages of speed keys
- Adjustable touchscreen viewing angle
- 77 tactile keys
- 4 MB of memory
- Grayscale LCD customer-side display
- 30+ selectable fixed barcode formats
- Compatible with third-party communication doftware, including Invatron's PLUM, ADC's InterScale and Droste's PCScale Manager
Options:
- SLP-V scale management software, including label design, data back-up and remote diagnostics
- Seafood and produce platters
Capacity | Dual Range: 15 lb x 0.005 lb / 30 lb x 0.01 lb |
Display Types |
Operator: Colour LCD, 7" Customer: Greyscale LCD, 7" |
Display Digits | Tare: 4 | Unit Price: 6 | Weight: 5 | Total Price: 6 |
Preset Keys | 1,980 keys: 20 x 99 pages |
Communication | Static TCP/IP 10/100 Base T Ethernet, Wireless WEP/WPA/WPA2 |
Interface | USB port, back-up and restore only |
Platter | 39.8 cm x 27.5 cm |
Print Head | Direct thermal 56 mm |
Memory Capacity | 4 MB |
Communication | TCP/IP 10/100 Base T Ethernet |
Printing Speed | 80 mm/100 mm/120 mm/150 mm/sec |
Label Size | Width: 38 mm to 64 mm | Length: 38 mm to 200 mm |
Label Roll | Inside Diameter: 40 mm | Outside Diameter: 100 mm |
Label Backing Paper | Width: Up to 66 mm |
Power Supply | AC 100V to 240V, 50/60 Hz |
Power Consumption | Stand-by: 50W | In Operation: 120W |
Classification | NTEP CC 07-099A2, UL listed |
Note: We do sell an RS-232 Serial Kit for the Uni-5, as well as a WIFI Kit.
